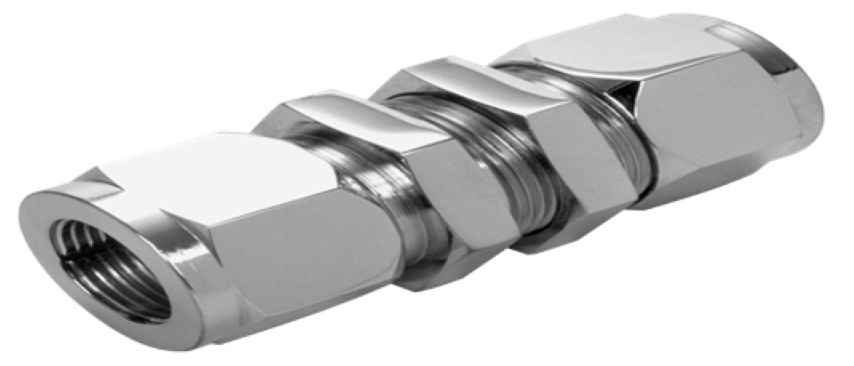

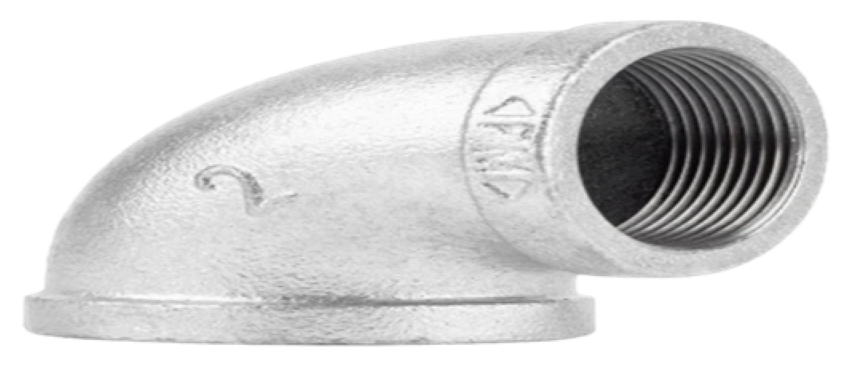

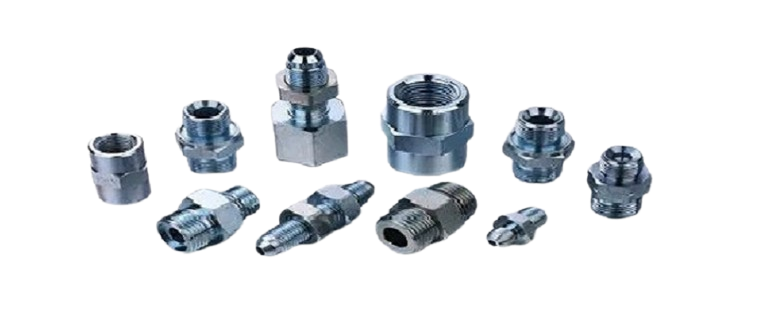

Designed to withstand extreme pressure, vibration, and temperature variations, hydraulic fittings are manufactured using high-strength materials such as stainless steel, carbon steel, and brass. They are available in a wide range of configurations including straight, elbow, tee, cross, and bulkhead fittings to suit diverse system requirements.
| BRAND | DE (Delixin Enterprises) |
|---|---|
| STANDARD | DIN 2353 / ISO 8434-1 |
| MATERIAL | MS, CS, SS 304, SS 304L, SS 316, SS 316L, SS 316Ti (1.4571), BRASS, COPPER, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, 904L, 6MO, TITANIUM, ALUMINIUM, ALLOY 20 |
| SERIES | LL – Low Pressure, L – Medium Pressure, S – High Pressure |
| WORKING PRESSURE | (Low) LL Series – 100 Bar (Medium) L Series – 100 Bar to 500 Bar (Heavy) S Series – 200 Bar to 800 Bar |
| SIZE RANGE | LL Series – 4L to 12LL L Series – 6L to 42L S Series – 6S to 38S |
| CONNECTIONS | Tube to Tube, Tube to Male Thread, Tube to Female Thread, Tube to Butt Weld, Tube to Socket Weld, Tube to JIC 37°, Tube to 24° Cone, Tube to Swivel End, Tube to Adjustable Stud/Nipple |
| WELD CONNECTIONS | Weld Nipple to Male Thread, Weld Nipple to Female Thread, Weld Nipple to Butt Weld, Weld Nipple to Socket Weld, Weld Nipple to 24° Cone, Weld Nipple to 37° JIC, Weld Nipple to Swivel |
| BODY TYPE | Forged, Bar Stock |
| ACCESSORIES | O-Ring, Dowty Seal, Copper Washer, ED Seal, Cutting Ring, Nut |
| O-RING & SEALS | NBR (–35°C to 100°C) | Viton (–25°C to 200°C) | PTFE (–60°C to 240°C) |
| SURFACE | Carbon Steel – Trivalent Zinc Plated, Yellow Plating, Black Phosphated Stainless Steel – Export Bright Finish, Short Blasted Finish, Electroplated Finish |
| TEMPERATURE | Steel (–40°C to 120°C), Stainless Steel (–60°C to 400°C), Brass (–60°C to 175°C) |
| EQUIVALENT BRANDS | Parker, HY-LOK, DK-LOK, Stauff, Hydac, Voss |
| APPLICATIONS & INDUSTRIES | Construction Equipment, Drilling Platforms, Hydro Power Plants, Machine Tools, Railway Technology, Shipbuilding, Wind Turbine, Mobile Hydraulic Equipment, Mining, Stationary Hydraulic Equipment, Industrial Hydraulics, Injection Moulding Machinery, Aluminium Die-Casting Machinery, Sintering Machinery, Steel Mills, Hydraulic Presses, Paper Processing, Mobile Hydraulics, Building Machinery, Agricultural Machinery, Forestry, Lifting & Material Handling Equipment |
| MATERIAL DESIGNATOR |
Stainless Steel – ASTM A 276, ASTM 182 Steel – ASTM 108 / A105, JIS G4051 S20C, S45C, G3201 SFA40 Brass – ASTM B16 UNS C36000, ASTM B282 Alloy 37700, JIS H3250 C3604, C3771, JIS H3250 C3771 |
