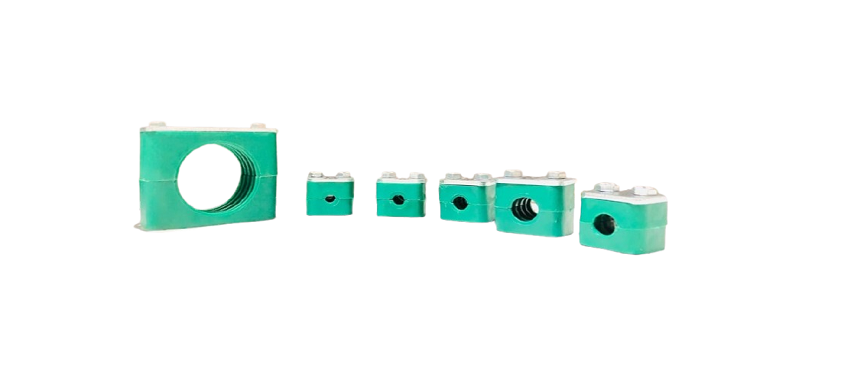

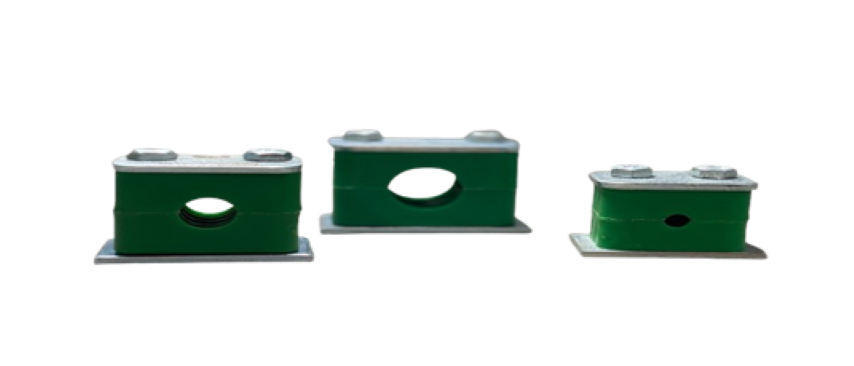

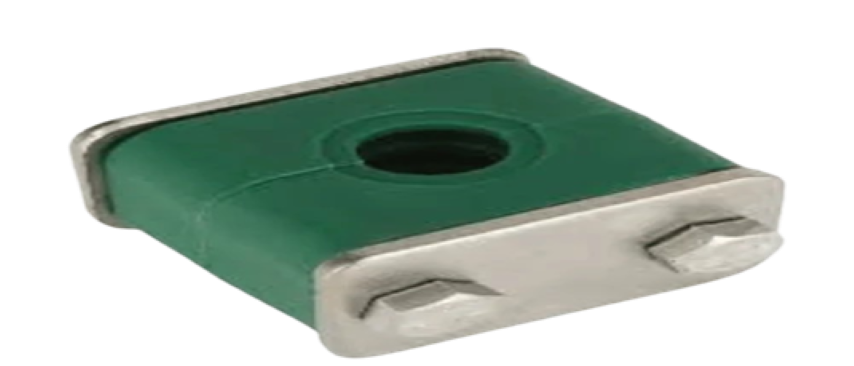

Hydraulic Tube Clamps are essential components used to support, secure, and guide pipes, tubes, and hydraulic lines in various industrial systems. They help minimize vibration, reduce noise, and prevent wear or damage caused by tube movement. Manufactured from durable materials like polypropylene, polyamide, aluminum, or steel, these clamps ensure long-lasting performance even in high-pressure and high-temperature environments. They are widely applied in hydraulic, pneumatic, and process industries for safe and organized tube installations.
| Brand | DE (Delixin Enterprises) |
|---|---|
| Equivalent To | STAUFF, SWAGELOK, PARKER |
| Minimum Order Quantity | 50 PIECE |
| Color | PP - GREEN AL - SILVER PA - BLACK |
| Locking Screw | STANDARD SERIES - M6 X 25 MM TO M6 X 100 MM HEAVY SERIES – M10 X 45 MM TO M30 X 300 MM |
| Clamp Body Material | POLYPROPYLENE, ALUMINUM, POLYAMIDE |
| Size Range | STANDARD SERIES - 1 /4’’ TO 2 ½’’ & 6 MM TO 76.1 MM HEAVY SERIES – 1/4” TO 8” & 6 MM TO 219 MM |
| Type | STANDARD (LIGHT DUTY), HEAVY DUTY & TWIN CLAMP, MULTI LAYER |
| Pressure | UPTO 6000 PSI |
| Material | JAWS – POLYPROPYLENE, ALUMINUM, POLYAMIDE TOP & BOTTOM PLATE AND BOLT – MS & STAINLESS STEEL 304, 316 |
| Stainless Steel Surface Treatment | STEEL – ZINC COATED (A3C), TRIVALENT STAINLESS STEEL –NATURAL , ELECTROPLATED |
| Standard | DIN 3015 : PART 1, PART 2 & PART 3 |
