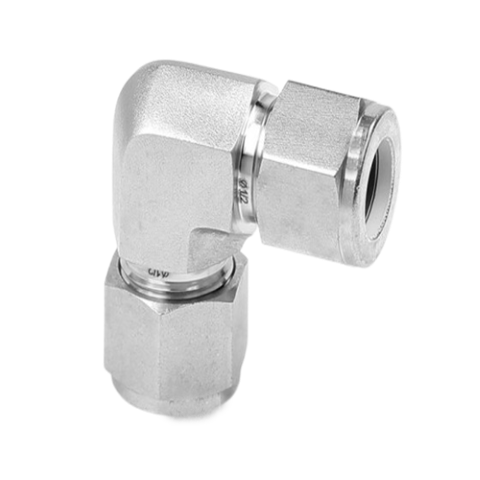

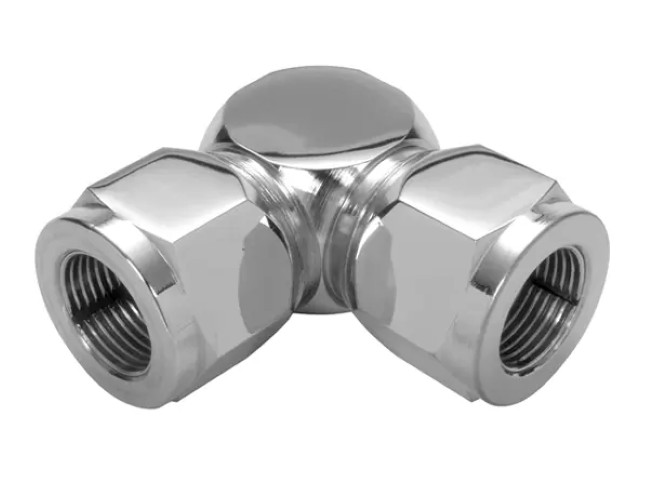

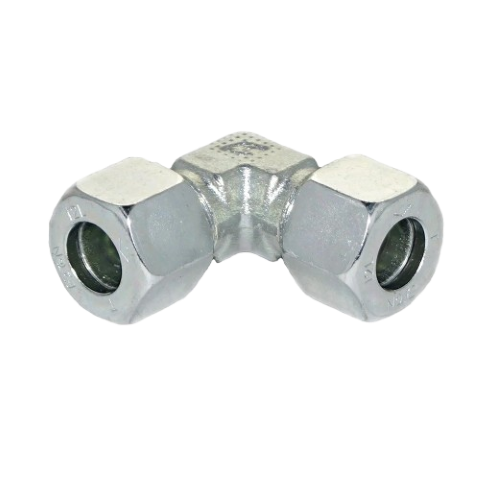

Union Elbow Fittings connect two tubes of the same or different sizes at a 90° angle, allowing directional change in limited space areas.
90° angular design for flow direction change
Leak-tight and reusable
Compact and precise engineering

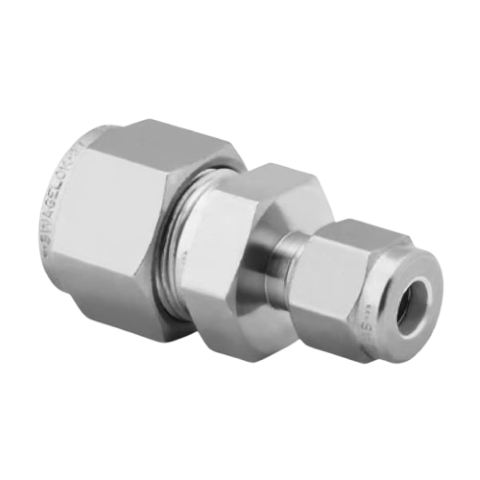

Available in reducing and bulkhead variants
| Size | 1/8” to 2” (3mm to 50mm)) |
| Pressure Rating | 1000 – 10,000 PSI |
| Standard Materials | SS 304/316, Brass, Alloy Steel |
| Threads | NPT, BSPT, BSPP, ISO, SAE |
| Standards | ASME, ASTM, DIN, BS |
