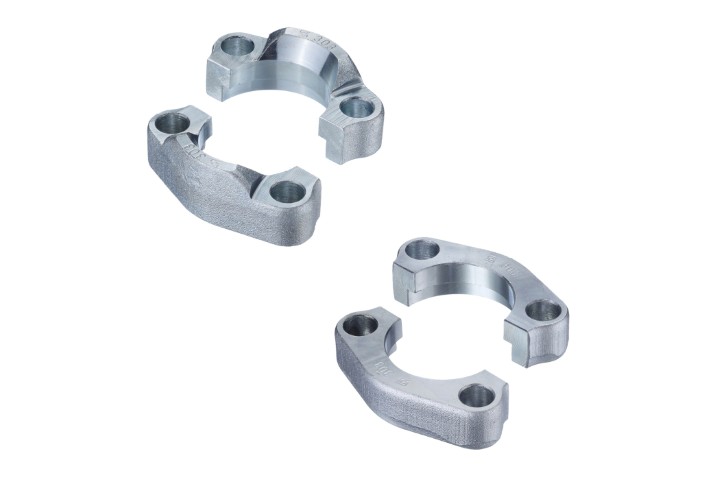

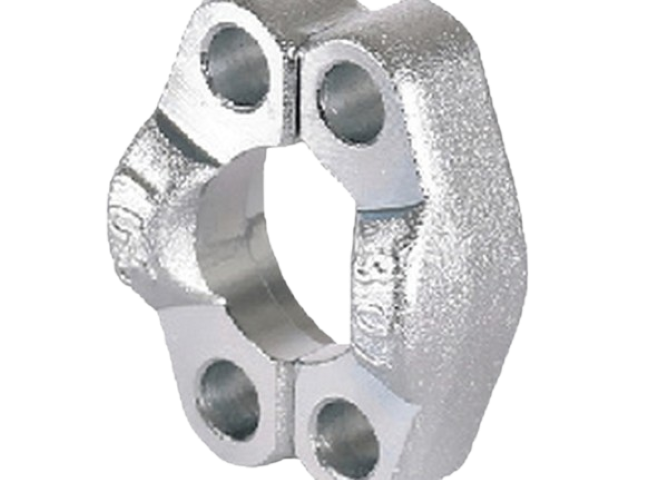

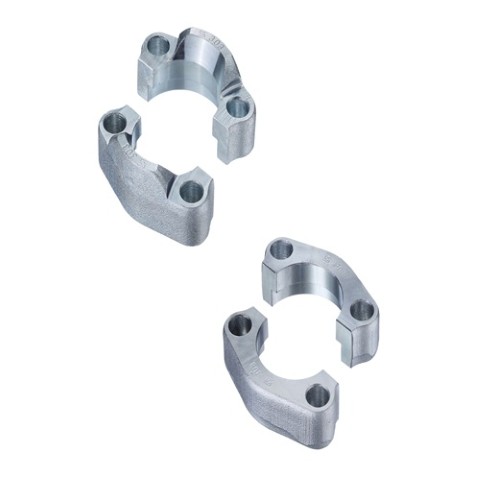

SAE Split Flanges are widely used in hydraulic piping systems to connect tubes, hoses, or pipes under high pressure. Unlike a solid flange, the split design consists of two halves that can be easily assembled around the flange head, making installation and maintenance quick and convenient, even in tight spaces. They are commonly applied in heavy machinery, marine systems, steel plants, and industrial hydraulics.
Split design allows easy installation without disassembling entire piping
Strong, leak-proof connection for high-pressure hydraulic systems
Available in Code 61 (Standard Pressure) and Code 62 (High Pressure) series
Corrosion-resistant finish for longer life
| Material Options | Carbon Steel (zinc plated), Stainless Steel, Alloy Steel |
| Size Range | ½” to 5” (DN 12 to DN 125) |
| Pressure Rating | Code 61: Up to 350 bar (5000 PSI) Code 62: Up to 420 bar (6000 PSI) |
| Temperature Range | –20°C to +250°C (depending on material & seal) |

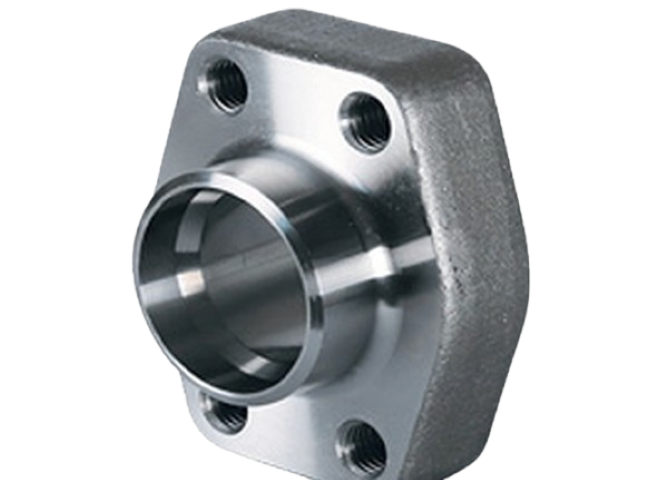

| Connection Types | Butt Weld, Socket Weld, Threaded |
