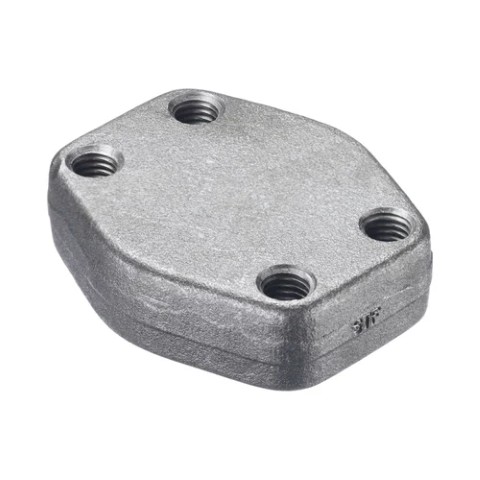

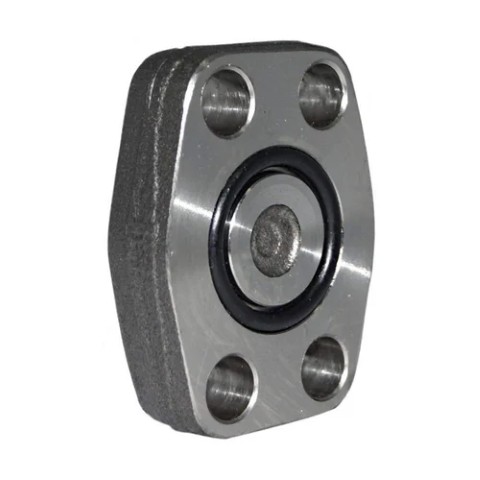

SAE Blind Flanges are used to close or seal the end of a hydraulic piping system or block off unused ports in hydraulic manifolds and pumps. They ensure a leak-proof closure, allowing future system expansion or modification without disturbing the entire line. Blind flanges are especially useful in hydraulic systems where pressure resistance and reliability are critical.
Provides a strong, leak-proof seal for unused hydraulic ports
Designed as per SAE J518 / ISO 6162 standards
Available in both Code 61 (Standard Pressure) and Code 62 (High Pressure) series
Easy installation and removal for system modifications
Corrosion-resistant surface finish for extended durability
Ideal for temporary or permanent sealing in hydraulic systems
| Material Options | Carbon Steel (zinc plated), Stainless Steel, Alloy Steel |
| Size Range | ½” to 5” (DN 12 to DN 125) |
| Pressure Rating | Code 61: Up to 350 bar (5000 PSI)) Code 62: Up to 420 bar (6000 PSI) |
| Temperature Range | –20°C to +250°C (depending on material & seal) |
| Applications | Hydraulic manifolds, Oil & Gas pipelines, Marine hydraulics, Heavy equipment, Steel & Power plants |
